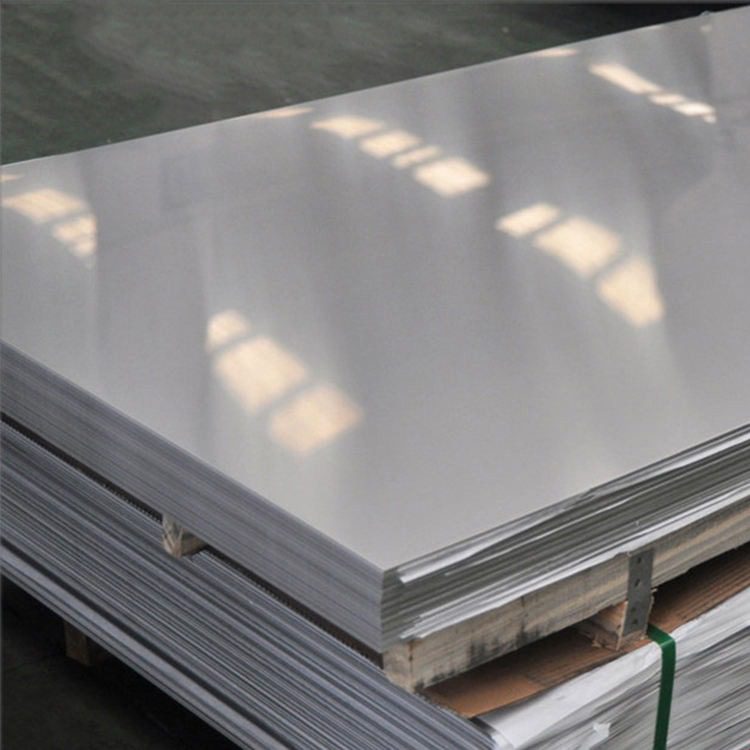

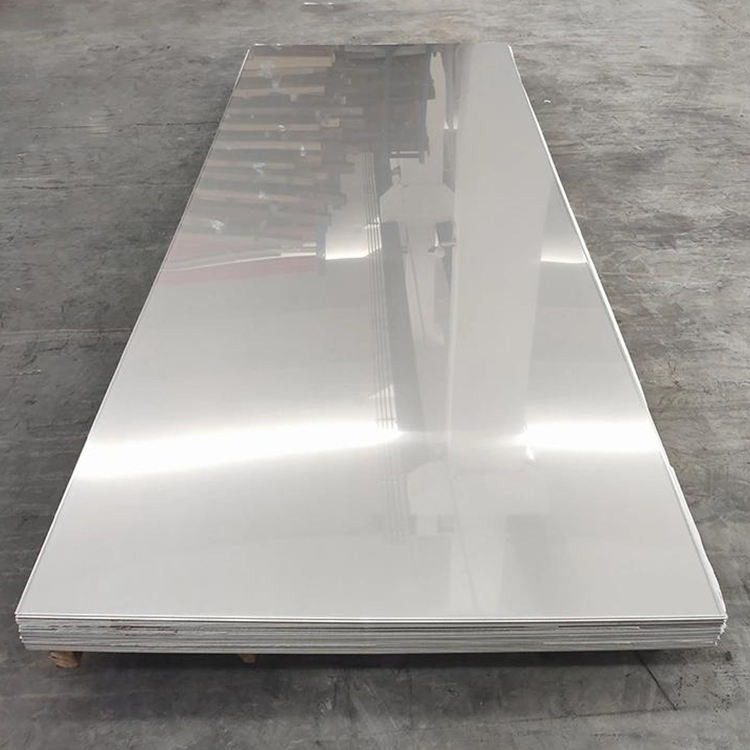

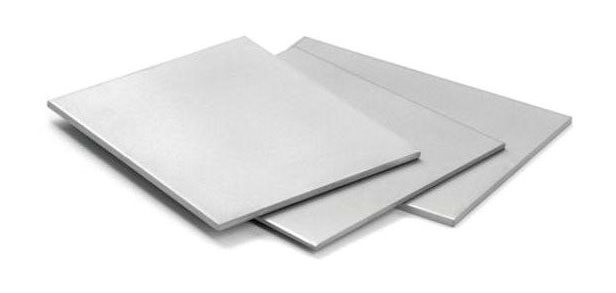

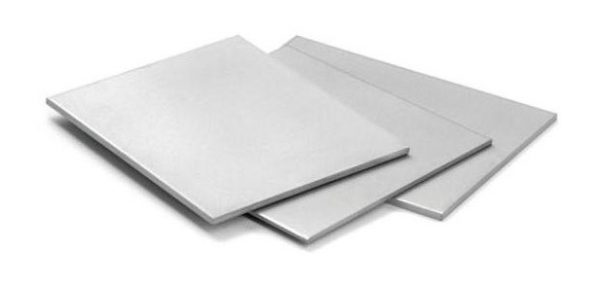

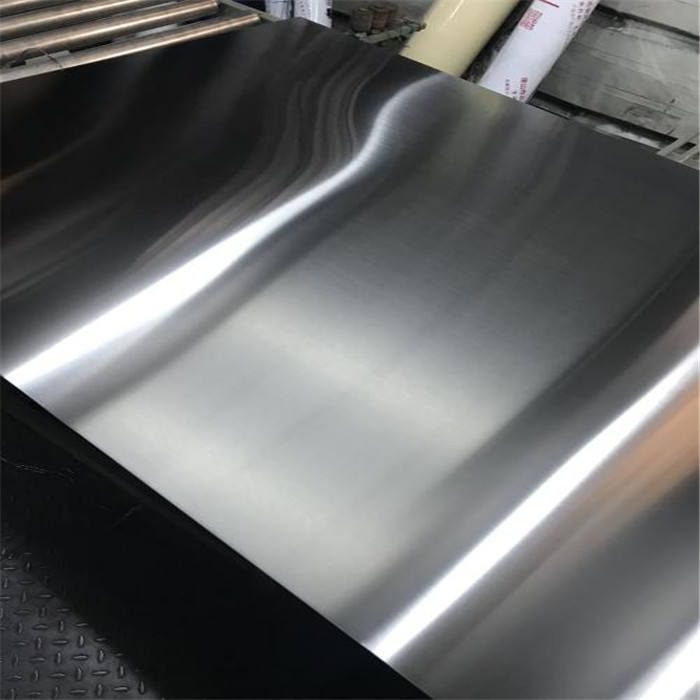

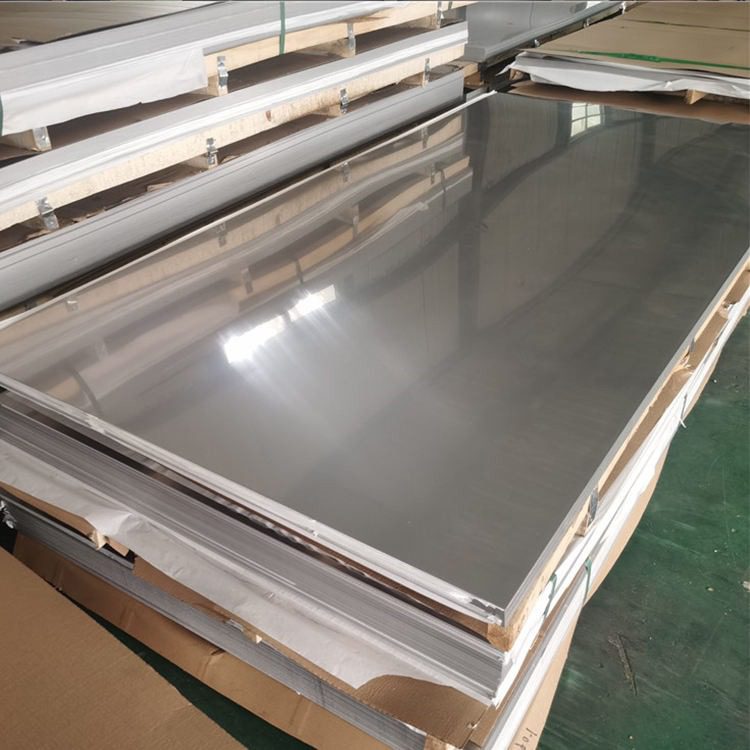

316Ti Stainless Steel Plate Description
316Ti stainless steel has excellent corrosion resistance in various corrosive media such as acids, alkalis, and salts. This is because it contains high chromium and nickel content, and an appropriate amount of titanium is added to the steel to improve corrosion resistance by forming a stable passivation film. 316Ti stainless steel has good processing properties, such as weldability, bending formability and machining performance. This enables easy processing and connection during the manufacturing process, improving production efficiency. What is more, 316Ti stainless steel
can still maintain good strength and stability at high temperatures and can be used in the temperature range of -253°C to 400°C. This makes it widely used in high-temperature environments in petroleum, chemical and other industries.
Product Parameters
| Product Name | 316Ti Stainless Steel Plate |
| Type | Plate |
| Thickness | 0.3mm-200mm |
| Length | 2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc. |
| Width | 40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc. |
| Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. |
| Surface | BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc. |
| Scope of Application | Widely used in high temperature and electrical industry, medical equipment construction, chemical, food industry, agriculture and ship parts, food and beverage packaging,
Kitchen supplies, trains, airplanes, conveyor belts, vehicles, bolts, nuts, springs and screens, etc. |
| Certificate | ISO, SGS, BV, etc. |
| Production Technology | Hot Rolling, Cold Rolling |
| Edge Processing | Edging, Trimming |
Chemical Composition
| C | Si | Mn | Cr | Ni | S | P | Mo | Ti |
| ≤ 0.08 | ≤1.0 | ≤ 2.0 | 16.0～18.0 | 10.0～14.0 | ≤ 0.03 | ≤ 0.045 | 2.0～3.0 | 0.5～0.7 |
Mechanical Properties
| Tensile Strength Kb (MPa) | Yield Strength σ0.2 (MPa) | Elongation D5 (%) | Hardness |
| ≥515 | ≥205 | ≥ 40 | ≤ 187HB;≤ 90HRB;≤ 200HV |
Physical Performance
| Density(g/cm³) | Modulus of Elasticity(Gpa) | Coefficient of Thermal Expansion(10-6/°C) | Coefficient of Thermal Conductivity(W/m*K) | Resistivity(ΜΩ. cm) |
| 7.99 | 193 | 16.0 | 16.2 | 74 |

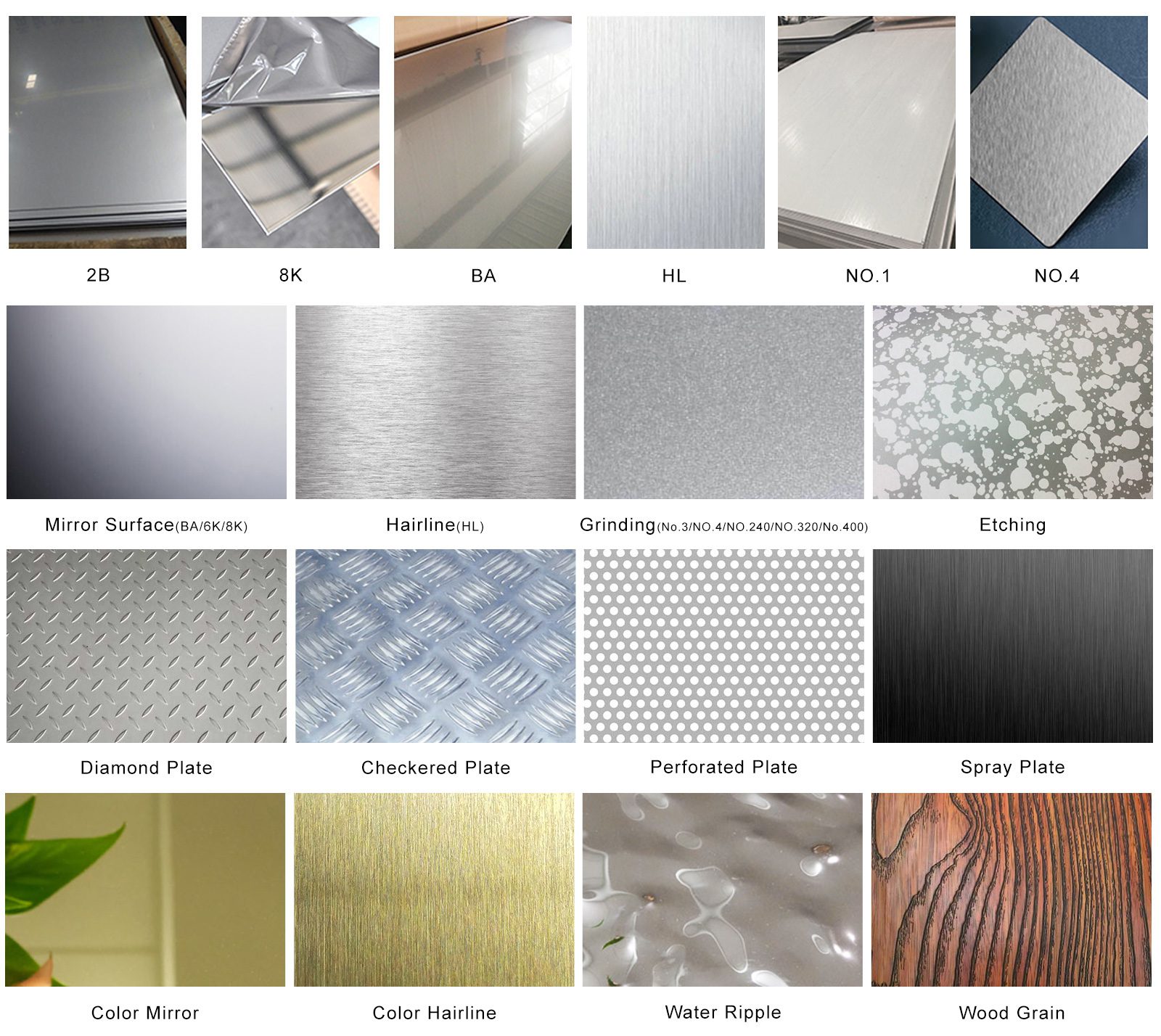

Surface Selection
