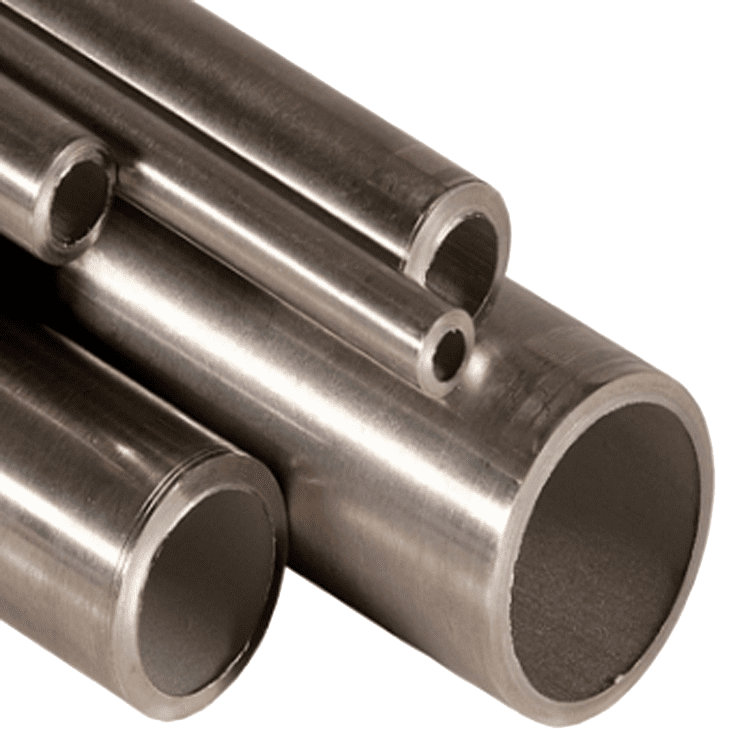

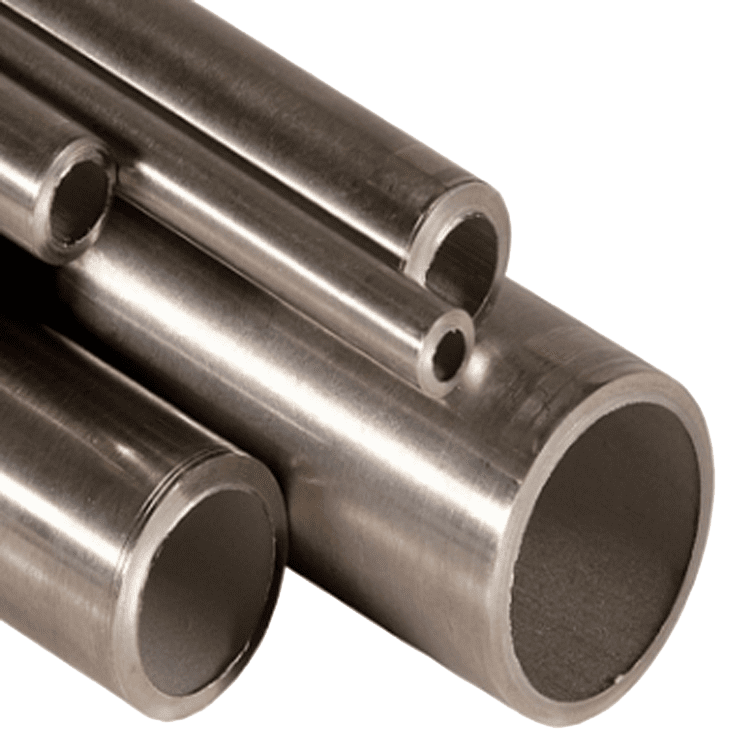

410 Stainless Steel Pipe Description
410 stainless steel is a type of martensitic stainless steel containing 11.5% of chromium to achieve excellent corrosion resistance. Additionally, 410 stainless steel has been quenched, tempered and polished to improve corrosion resistance and hardness. Compared to austenitic stainless steel, martensitic stainless steel is less superior as it requires a final heat treatment before manufacturing. Grade 410 stainless steel has the property to withstand hot gases, steam, food, weak acids and bases, fresh water, and dry air. 410 stainless steel pipe is a versatile and popular choice in automotive manufacturing due to numerous advantages. A key advantage of this material is its high strength, making it ideal for applications requiring durability and wear resistance.
Product Parameters
| Product Name | 410 Stainless Steel Pipe | |
| Type | Steel Pipe | |
| Outer diameter | Round Tube | 4mm-200mm |
| Square Tube | 10*10mm-100*100mm | |
| Rectangular Tube | 10*20mm-50*100mm | |
| Wall Thickness | 0.6mm-6.0mm | |
| Length | 1-6 meters, Length can be customized | |
| Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. | |
| Surface | Black, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc. | |
| Scope of Application | Common applications for stainless steel pipes include food processing,
Textile operations, Breweries, Water treatment plants, Oil and gas processing, Fertilizers and pesticides, Chemical applications, Construction, Pharmaceuticals, Auto parts, etc. |
|
| Certificate | ISO, SGS, BV, etc. | |
| Production Technology | Hot Rolling, Cold Rolling | |
| Edge Processing | Edging, Trimming | |
Chemical Composition
| C | Si | Mn | Cr | Ni | S | P |
| ≤ 0.15 | ≤1.0 | ≤1.0 | 11.5～13.5 | ≤ 0.5 | ≤ 0.03 | ≤ 0.04 |
Mechanical Properties
| Tensile Strength Kb (MPa) | Yield Strength σ0.2 (MPa) | Elongation D5 (%) | Hardness |
| ≥450 | ≥205 | ≥20 | ≤ 201HB |
Physical Performance
| Density(g/cm³) | Modulus of Elasticity(Gpa) | Coefficient of Thermal Expansion(10-6/°C) | Coefficient of Thermal Conductivity(W/m*K) | Resistivity(ΜΩ. cm) |
| 7.74 | 200 | 9.9 | 24.9 | 570 |
