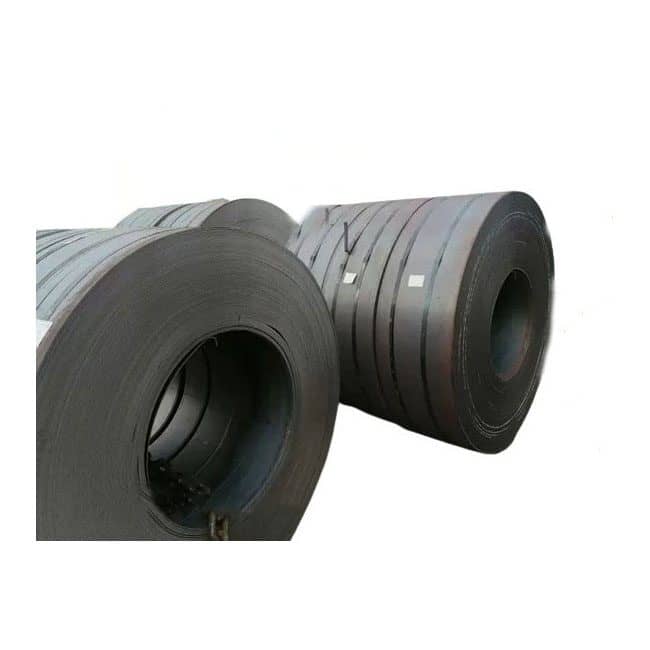

4135/4140/4142/6150 Alloy Coil EN10083-3 Description
There are steel types 50CrMo4, 51CrV4, 20MnB5, 34CrMo4, 42CrMo4, and 27MnCrB5-2. EN 10083-3 steel coil has high strength, high toughness and good hardenability. This alloy requires high-temperature preheating before welding to relieve stress after welding. EN 10083-3 steel coils are used in the manufacture of tools that require good formability and high strength. It is usually chosen to manufacture large and important parts, such as heavy-duty mechanical shafts, turbine shaft blades, high-load transmission parts, fasteners, crankshafts, gears, and heavy-duty parts of electric motor structures, etc..
Product Parameters
| Product Name | 4135/4140/4142/6150 Alloy Coil EN10083-3 |
| Production Process | Hot Rolling, Cold Rolling |
| Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
| Width | 45mm-2200mm |
| Length | Custom Size |
| Thickness | Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm |
| Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process | Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
| Brand | C | Si max | Mn | P max | S max | Cr | Mo | V |
| 34CrMo4 | 0.3-0.37 | 0.40 | 0.6-0.9 | 0.025 | 0.035 | 0.9-1.2 | 0.15-0.3 | – |
| 42CrMo4 | 0.38-0.45 | 0.40 | 0.6-0.9 | 0.025 | 0.035 | 0.9-1.2 | 0.15-0.3 | – |
| 50CrMo4 | 0.46-0.54 | 0.40 | 0.5-0.8 | 0.025 | 0.035 | 0.9-1.2 | 0.15-0.3 | – |
| 51CrV4 | 0.47-0.55 | 0.40 | 0.7-1.1 | 0.025 | 0.025 | 0.9-1.2 | – | 0.1-0.25 |
Mechanical Properties
| Thickness mm | Re min. N/mm2 | Rm N/mm2 | A min % | From min % | KVb min J |
| ≤ 8 | 900 | 1000-1300 | 10 | 40 | – |
| 8-20 | 750 | 1000-1200 | 11 | 45 | 35 |
| 20-60 | 650 | 900-1100 | 12 | 50 | 35 |
| 60-100 | 550 | 800-950 | 13 | 50 | 35 |
| 100-160 | 500 | 750-900 | 14 | 55 | 35 |
Scope of Application
EN 10083-3 steel plates are used to manufacture tools that require good plasticity and high strength. It is usually selected to manufacture large parts and important parts, such as heavy mechanical shafts, turbine shaft blades, high loads of transmission parts, fasteners, crankshafts, gears, and heavy-duty parts of motor structures.
Equivalent Material
| European Standard | American Standard | German Standard | Japanese Standard | National Standard | International Standards |
| 34CrMo4 | 4135 | 34CrMo4 | SCM435H | 35CrMo | 34CrMo4 |
| 42CrMo4 | 4140, 4142 | 42CrMo4 | SCM440H | 42CrMo | 42CrMo4 |
| 50CrMo4 | – | 50CrMo4 | – | 50CrMo | 50CrMo4 |
| 51CrV4 | 6150 | 50CrV4 | SUP10 | 50CrVA | 51CrV4 |
