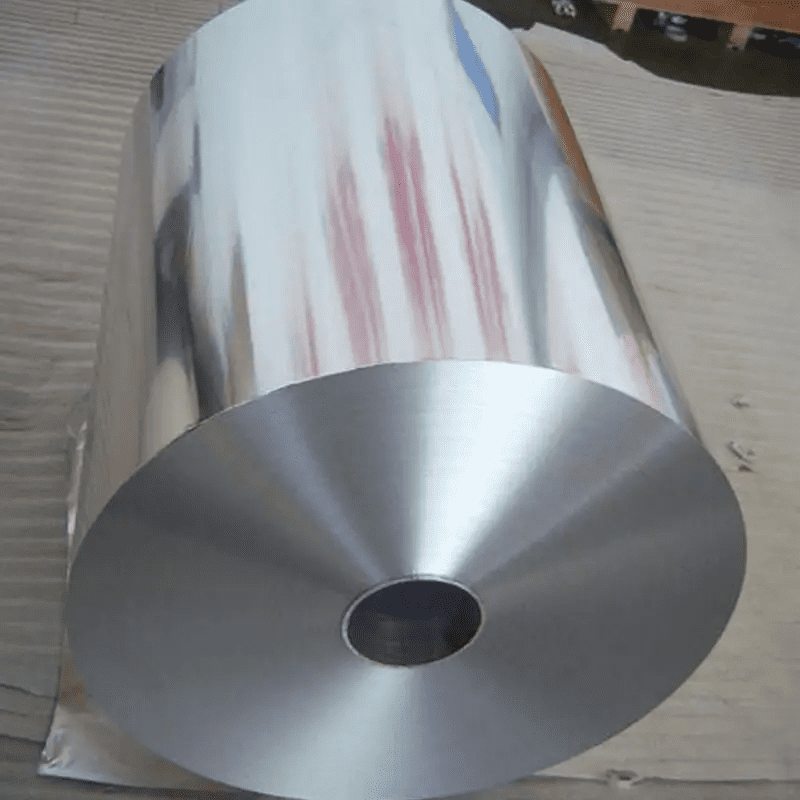

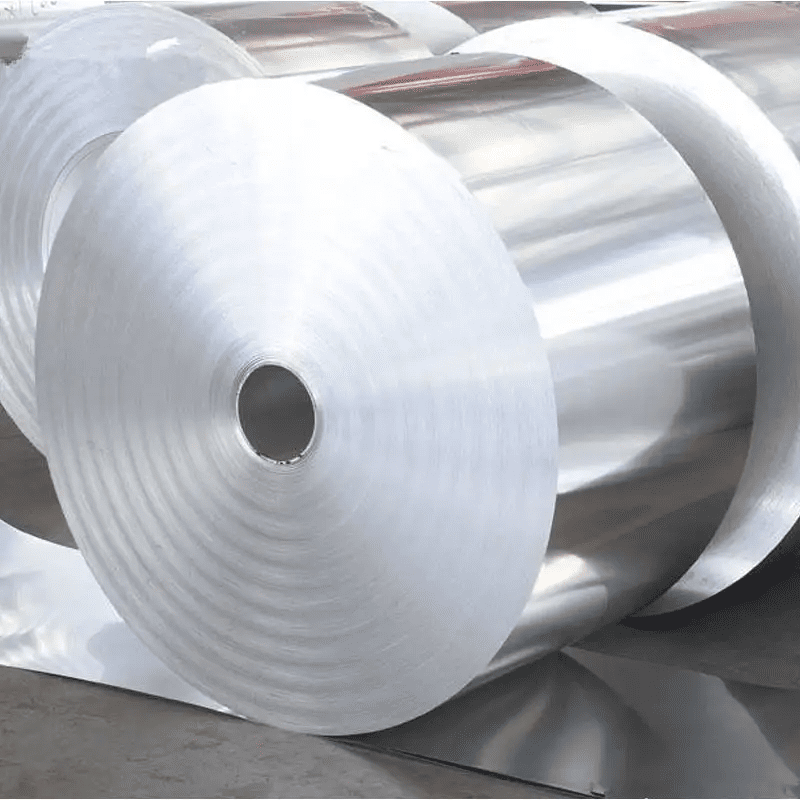

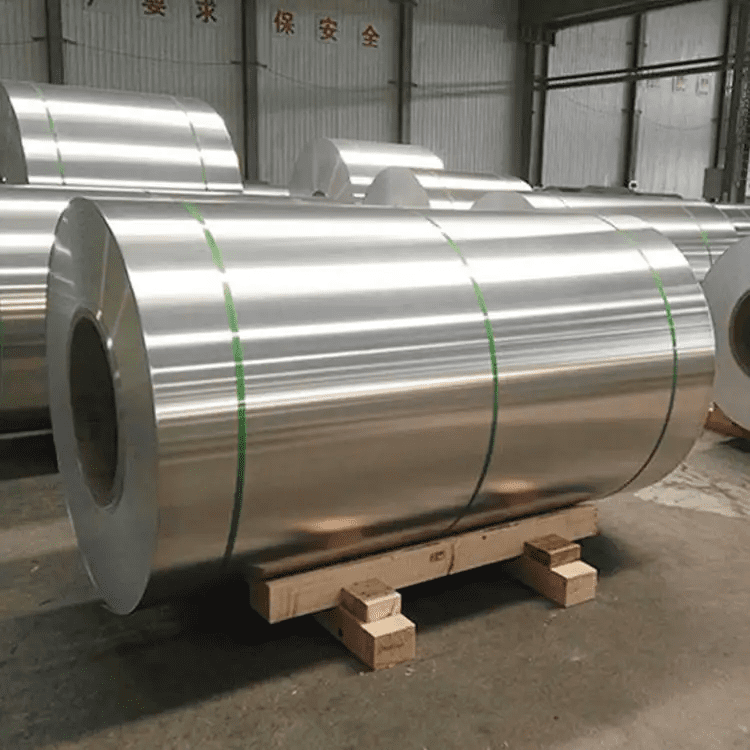

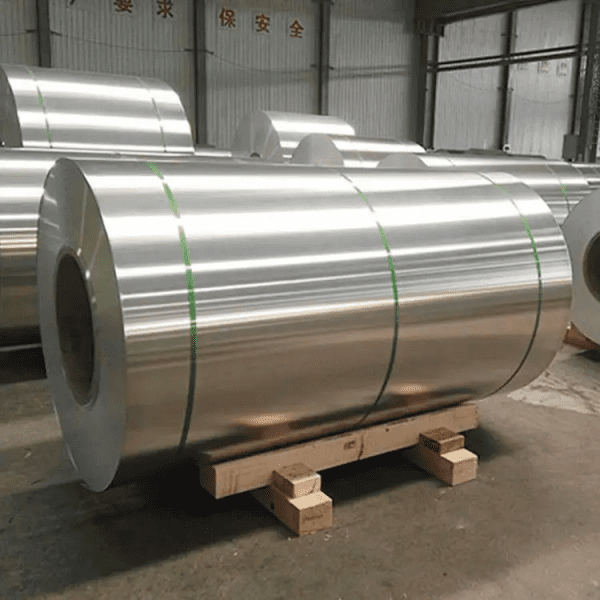

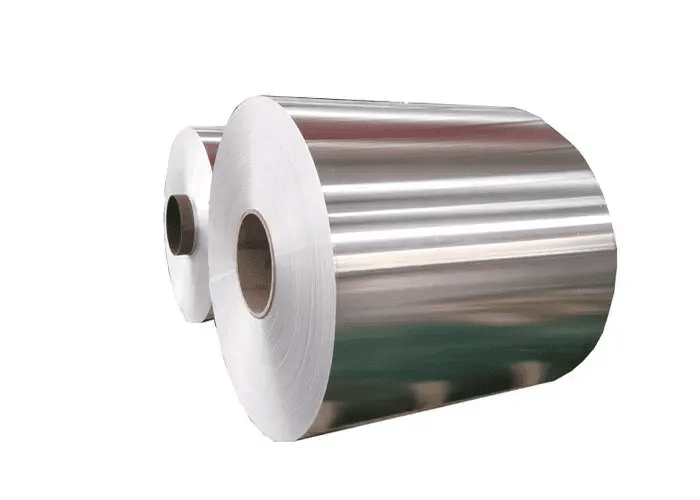

5005 Aluminum Foil Description
5005 aluminum foil is a common aluminum alloy material composed of aluminum and other alloy elements. Its chemical composition mainly includes aluminum, making up more than 99.7%, as well as small amounts of magnesium, silicon, and iron. 5005 aluminum alloy can effectively resist oxidation, corrosion, fading and other problems having remarkable oxidation resistance in atmospheric environment. Besides, 5005 aluminum foil has good plasticity and processability, as it can be formed through various methods such as cold working and hot working. The process of 5005 aluminum foil has good adjustability. Its hardness, strength, plasticity and other properties can be adjusted through appropriate heat treatment processes.
Product Parameters
| Width | 20-3000mm or customized | Thickness | 0.1-120mm or customized |
| Length | 100-12000mm or customized | Certificate | ISO, SGS, BV |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. | ||
| Brand | 1000 Series: 1050 1060 1070 1100 1200 1235 etc.
3000 Series: 3003 3004 3005 3104 3105 3A21 etc. 5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 5A05 etc. 6000 Series: 6061 6063 6082 6A02 etc. 7000 Series: 7050 7475 7075 etc. 8000 Series: 8A06 8011 8090 etc. |
||
| Surface | Coating, Embossing, Drawing, Polishing, Anodizing, etc. | ||
| OEM Service | Punching, Cutting Special Size, Making Flat Surface, Surface Treatment, etc. | ||
| Delivery Time | Received 30% after deposit 7-15 working days | ||
| Application | Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware and other fields | ||
| Sample | Free Offers Sample | ||
| Packaging | Strapping, Plastic bag, Film, Wooden pallet standard seaworthy export packing or according to customer requirement | ||
Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others:
Each |
Others:
Total |
Al: Min. |
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | – | 0.05 | 0.03 | 0.03 | – | 99.50 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | – | 0.05 | 0.03 | 0.03 | – | 99.60 |
| 1070 | 0.20 | 0.25 | 0.04 | 0.03 | 0.03 | – | 0.04 | 0.03 | 0.05 | – | 99.70 |
| 1100 | 0.95 Si Fee | 0.05~0.20 | 0.05 | – | – | 0.1 | – | 0.05 | 0.15 | 99.0 | |
| 2014 | 0.5~1.2 | 0.7 | 3.9~5.0 | 0.4~1.2 | 0.2~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
| 2017 | 0.2~0.8 | 0.7 | 3.5~4.5 | 0.4~1.0 | 0.4~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | 91.5 – 95.5 |
| 2024 | 0.50 | 0.50 | 3.8~4.9 | 0.3~0.9 | 1.2~1.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
| 3003 | 0.60 | 0.70 | 0.05~0.20 | 1.0~1.5 | – | – | 0.10 | – | 0.05 | 0.15 | Allowance |
| 3A21 | 0.60 | 0.70 | 0.20 | 1.0-1.6 | 0.05 | – | 0.15 | 0.1-0.2 | – | – | Allowance |
| 3004 | 0.30 | 0.70 | 0.25 | 1.0~1.5 | 0.8~1.3 | – | 0.25 | – | 0.05 | 0.15 | Allowance |
| 3005 | 0.60 | 0.70 | 0.30 | 1.0~1.5 | 0.2~0.6 | 0.10 | 0.25 | 0.10 | 0.05 | 0.15 | Allowance |
| 3105 | 0.60 | 0.70 | 0.30 | 0.3~0.8 | 0.2~0.8 | 0.20 | 0.40 | 0.10 | 0.05 | 0.15 | Allowance |
| 5005 | 0.30 | 0.70 | 0.20 | 0.20 | 0.5~1.1 | 0.1 | 0.25 | – | 0.05 | 0.15 | Allowance |
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2~2.8 | 0.15~0.35 | 0.10 | – | 0.05 | 0.15 | Allowance |
| 5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6~3.6 | 0.30 | 0.20 | 0.15 | 0.05 | 0.15 | Allowance |
| 5A05 | 0.50 | 0.50 | 0.10 | 0.3-0.6 | 4.8-5.5 | – | 0.20 | – | 0.05 | 0.05 | Allowance |
| 5083 | 0.40 | 0.40 | 0.10 | 0.4~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
| 6061 | 0.40~0.8 | 0.70 | 0.15~0.4 | 0.15 | 0.8~1.2 | 0.04~0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
| 6082 | 0.70~1.3 | 0.50 | 0.10 | 0.4~1.0 | 0.6~1.2 | 0.25 | 0.20 | 0.10 | 0.05 | 0.15 | Allowance |
| 7075 | 0.40 | 0.50 | 1.2~2.0 | 0.30 | 2.1~2.9 | 0.18~0.28 | 5.1~6.1 | 0.20 | 0.05 | 0.15 | Allowance |
Mechanical Properties
| Tensile Strength
(MPa) |
Test Stress
0.2% (MPa) |
Hardness
HB |
Elongation Rate
(%) |
| 105-145 | ≥85 | ≥34 | ≥12 |
Physical Performance
| Density | Melting Point | Modulus of Elasticity | Thermal Conductivity | Thermal Expansion | Resistivity |
| 2.71 Kg/m³ | 650°C | 71 GPa | 222 W/m.K | 24 × 10-6/K | 0.282 × 10-6Ω.m |
Annealing State
| Brand | Annealing State |
| 1xxx: 1050, 1050A, 1060, 1100 | O, H12, H14, H16, H18, H22, H24, H26, H28, H111 |
| 3xxx: 3003, 3004, 3005, 3105 | |
| 5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454 | O, H22, H24, H26, H28, H32, H34, H36, H38, H111 |
| 6xxx: 6061, 6082 | T4, T6, T451, T651 |
| 2xxx: 2024 | T3, T351, T4 |
| 7xxx: 7075 | T6, T651 |
Scope of Application
| Aluminum Uses And Application Area | |
| Food Packaging | Beverage can ends, cans, bottle caps, etc. |
| Building | Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc. |
| Transportation | Auto parts, passenger car bodies, aviation ships and air cargo containers. |
| Electronic Equipment | Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc. |
| Consumer Goods | Umbrellas, cooking utensils, sports equipment, etc |
| Other | Military, color coated aluminum plate |
